STARNDARD CABLE TRAYS & SPECIFICATIONS:
Technical specifications:
| MATERIAL | FINISH | STANDARD |
|---|---|---|
| MILD STEEL | BARE FINISH | IS1079/1S2062 |
| HOT DIP GALVANISED AFTER FACBRICATION | 1S2629/4759, BS729, ASTM123 |
|
| Electro Galvanized after Fabrication | IS12753 | |
| RED OXIDE PAINTED | IS2075 | |
| EPOXY PAINTED | IS7348 | |
| SYNTHETIC ENAMLE PAINTED | IS101-1988 | |
| POWER COATED AFTER FABRICATION | IS7651 | |
| ALLUMINIUM | BORE FINISH | 1S8011/IS1060 |
| GI SHEET | PRE GALVANISED | IS277 |
| STAINLESS STEEL | BARE-FINISH | SS8304/SS316 |
| CUSTOMER SPECIFIED | == | == |
| STRENGTH (S) |
THICKNESS (T) |
TRAY WIDTH (w) |
TRAY HEIGHT (H) |
TRAY COLLAR (C) |
TRAY LENGTH (L) |
BENDS RADIUS/DEGREES |
|---|---|---|---|---|---|---|
| LIGHT DUTY | 1.2mm (18swg) 1.6mm(16swg) |
50 to 1000/ 1200mm |
20mm/ 25mm/ 40mm/ 50mm/ 75mm/ 100mm/ 125mm |
10mm or 15mm or 25mm |
2500mm or 3000mm |
300mm 450mm 600mm 1000mm |
| MEDIUM DUTY | 2.0MM (14swg) |
Perforated type:
We bring forth an impeccable array of perforted Cable Tray for Our clients.offered trays are widely used for Installation of regular cables as well as controlled cables in various industries and sectors.our range is widely acclaimed for it's ability to accomdate a large number of branch lines giving a high loadbearing capacity.Furthermore we also offer these cable trays in various customized specifications as per requirement of our clients

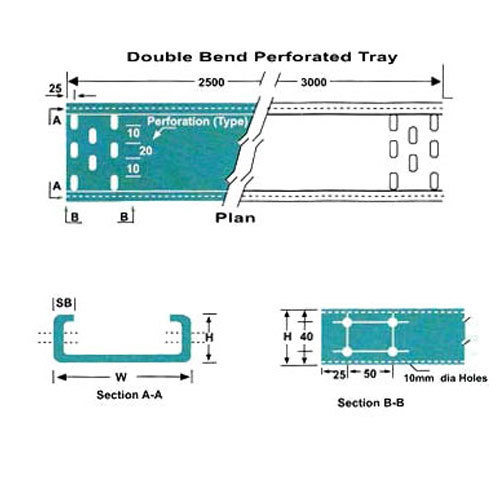

Double Bend perforated tray:

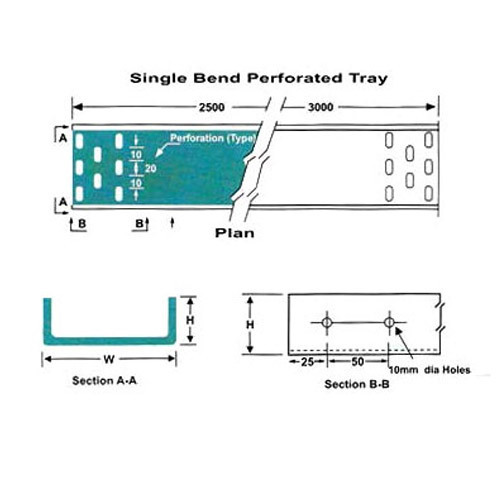

Single Bend perforated tray:
| Perfortation Details |
Tray WIDTH(W) |
Tray HEIGHT(H) |
Tray COLLAR(C) |
Tray LENGTH(L) |
Tray THICKNESS(T) |
Type of RAW MATERIAL |
FINISH |
|---|---|---|---|---|---|---|---|
| slot size 20✕10mm |
500mm to 100mm |
25mm to 100mm |
15mm to 25mm |
2500 to 3000mm |
1.6 to 3.0mm |
Mild stool(MS) Aluminium |
Hot dip galvanised |
| WIDTHWISE 10MM GAP: 20✕10mm |
100mm | 100mm | 25mm | 3000mm | 3.0mm | Stainless steel | galvanised sheet (GI) power coated Enamel painted |
| RADIUS | TYPE OF BENDS | Degrees |
|---|---|---|
| 300/450/600/1000 asper the customer choice |
Horizontal, Vertical (Inside/Outsie) Tees |
30, 45, 60, 90 for Bends |

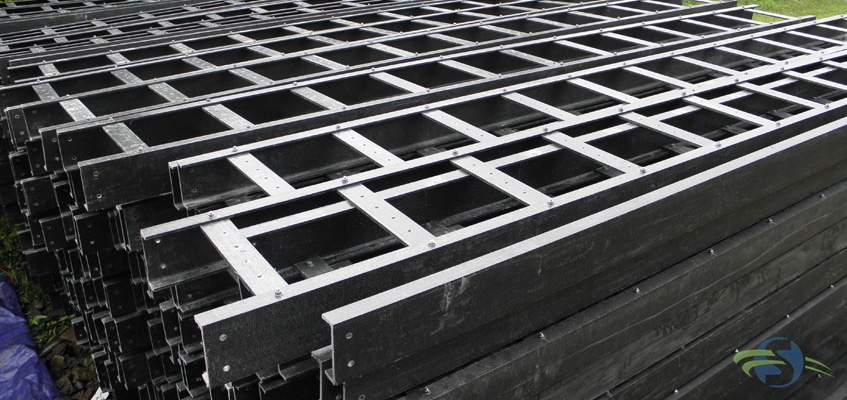

ANGULAR LADDER TYPE(ALTCT):
MNR Angular Ladder Type(ALTCT) are fabricated to M.S.Angles Confirming to I.S. 2062;1992. M.S. Angles are used as Runners and M.S. Flats as Rungs. Rung spacing is 250mm length and 300mm for 3000mm length of Cable Trays. Rungs can be provided Single/Double, as per the Customer’s choice
| TRAY WIDTH (W) | RUNNER ANGLE | RUNG FLAT | RUGS SPACING | TRAY LENGTH(L) | FINISH |
|---|---|---|---|---|---|
| 150mm or 1000mm |
25✕25mm✕6mm 40✕40mm✕6mm 50✕50mm✕6mm 65✕65mm✕6mm 75✕75mm✕6mm |
20✕10mm 20✕10mm 20✕10mm |
250 or 300mm interval double and single |
2500 mm or 3000mm interval double and single |
HOT DIP GALVANISED POWDER COATED |
| RADIUS | TYPE OF BENDS | Degrees |
|---|---|---|
| 300/450/600/1000 asper the customer choice |
Horizontal, Vertical (Inside/Outsie) Tees cross reducers |
30, 45, 60, 90 for Bends |
