Earth Electrodes

G.I STRIPS&PLATES

These are used as earthing material along the length of cable trays & electrodes. These strips are available in ditferent widths and thickness confirming to |.S.2062; 1992 Aluminium Strips These are used for binding the Cable Trays

GI WIRE

These are used for binding the Cable Trays and available in various Gauges. Stainless steel (SS) Bolts & Nuts & Washers Earthing Rods in M.S. Galvanized up to 40mm Dia ISMC CHANNEL & Angles. Any other size of your choice can be supplied on order. Note: Hot Dip Galvanized atter fabrication ILS. 3043 : 1987

Alluminium strips

Aluminium Strips These are used for binding the Cable Trays

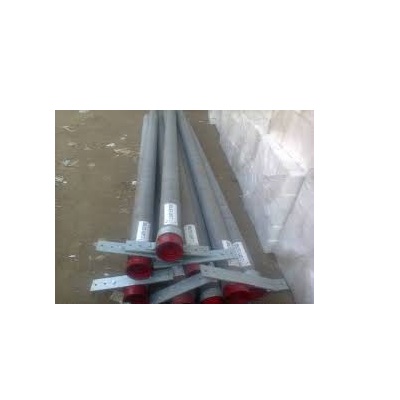

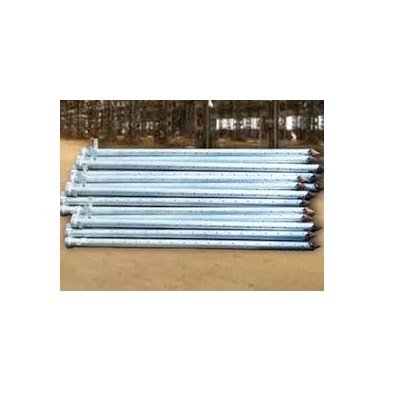

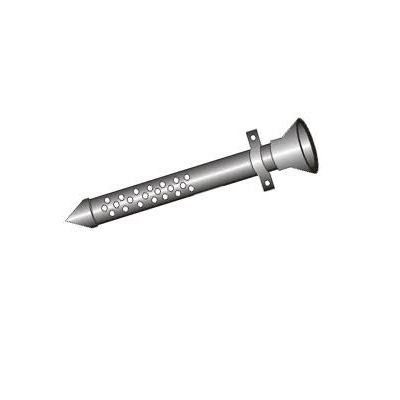

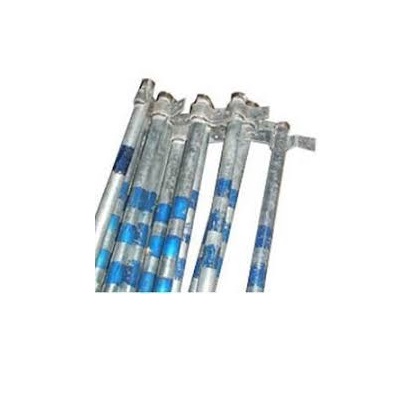

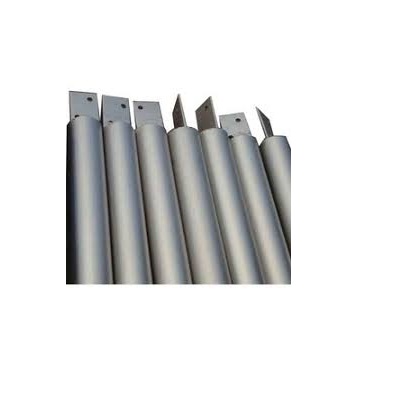

GI/EARTHING PIPES :

40 45 45 40 a / Cee 10Dia Taped Hole a 75 x 10MS Plate Welded to Pipe Removable Cap See Detail-1 PK a Dia N.B. Pipe (Medium) 3000

. 12 Dia Holes wo L wo ~ i Weld MS. Plate © ° 1 Bent to Shape i (__—300>_I oa ne Removable Cap Made of Funnel with Steel z M.S Plate Welded to 75Dia wire mesh N.B. Pipe (Medium) (Removable) 75Dia N.B. Pipe (Medium) 65Dia N.B. Pipe (Medium)

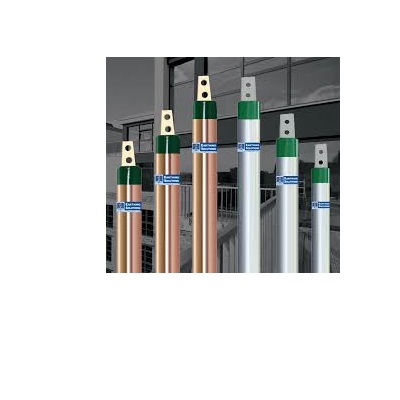

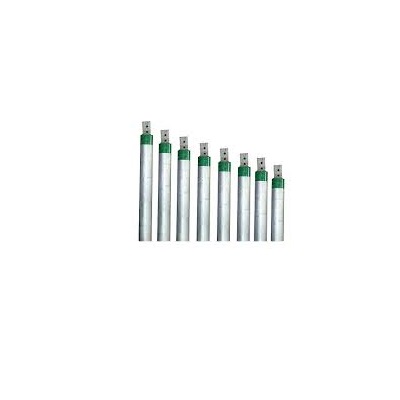

Advance Earthing Electrodes:

MNR advanced earthng electrodes are engineered to endure the most enviously corrosive environments. These electrodes are robust enough to withstand fault currents of very high magni- tude. Fabricated from excellent quality G.|./Copper pipes, these electrodes are virtually indestructible.

The pipes are protiled with proprietor super conductive crystal- line compound’ which encloses the primary conductor completely, increasing it’s surface are and also forming a protective layer against corrosion. It never allows the primary conductor to come in direct contact with corrosive elements in the surrounding soil.

Features:

1. Robust design to last for a lifetime

2. Three level protection trom corrosion

a) Outer Pipe (Gl/Copper)

b) Layer of super conductive crystalline compound

c) Primary conductor (Pipe / Strip)

Straight section of solid bottom calbel trays constructed from single sheet of metal, providing excellent protection from external damage.They are used primarly for instrumental control,communication and other non heat producing cables

The Power Control Center has a compartmentalized board with a current conveying limit up to 6300Amp. The Power Control Center is a typical control board with various vertical areas from where the distinctive electric parameters are observed and controlled. This scope of Power Control Centers is extremely compelling in taking care of high current at low voltage. We have faith in offering our customers predominant quality Power Control Centers. The Power Control Center has a compartmentalized board with a current conveying limit up to 6300Amp. The Power Control Center is a typical control board with various vertical segments from where the diverse electric parameters are checked and controlled. This scope of Power Control Centers is extremely compelling in dealing with high current at low voltage .

Features:

Robust design, Hassle free operation, Maintenance free

Further Details :

Principle PCC board is again a power appropriation board to control the power provided to HT engines, MCC boards and transformers who assume fundamental part in any electrical control framework. Principle PCC boards are generally utilized as a part of refineries, concoction plants, dairies, refrigeration plant, pharmaceuticals and plastic industry. Typically Main PCC board is having particular development with link channel is on either best or base of the structure.

Available In Various Models Such As

ACB/ MCCB SFU (moulded case circuit breakers), Draw out and non draw out types.

Salient Features:

Single operated type or double front operated type and are Integrated with all necessary protections to meets all safety standards, High efficiency, Precision engineered.
